Main Features:

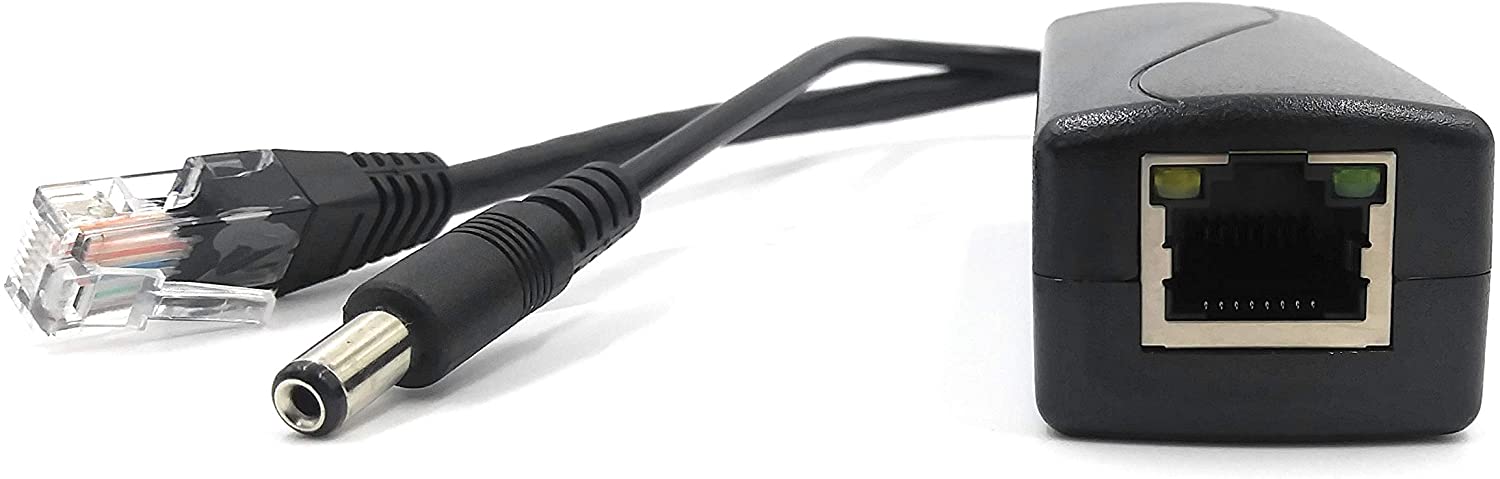

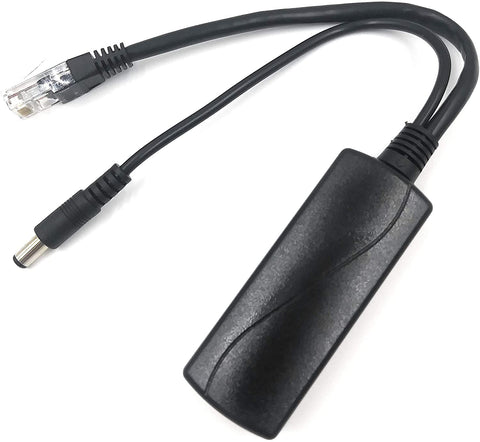

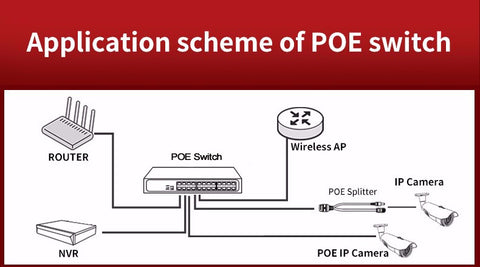

This is a economical and pratical high performance and hgh reliability PoE distant powered equipment based on IEEE 802.3at standard, it can divide the power and data signal from network cable, can be used with power supply equipment(PoE injector) which is compatible with IEE802.3af, and supply power and data for Non PoE network equipment.
1)Support 10/100 Mbps data transmission
2) 44V-57V wide power voltage input makes it very conveniently to use direct current DC48V power from generator room or PoE power supply equipment, standard or non standard PoE injector, PoE switch, etc.
3) Supply DC12V power, which is very suitable for small network equipment.
4) Lightning protection design, effectively protect PD from lightning and save loss, please put it close to ground!
5) High quality design ensure the equipment work stably and reliably.
6) Tips: lease keep the device from water, enough space for heat-dissipating, connect the ground line correctly, so that it could extend its lifespan for a longer time.

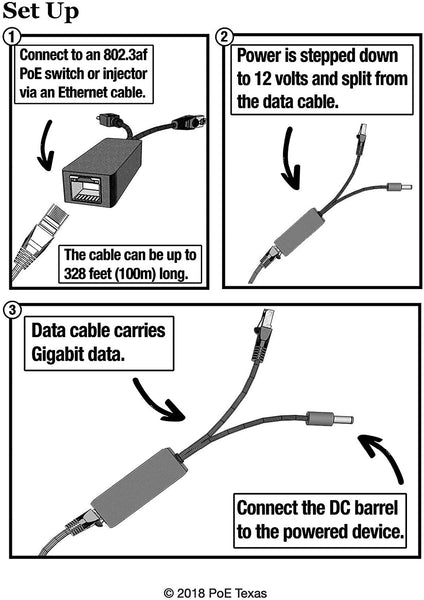

Installation Steps:
Step 1: Connect AC power cord to PoE injector, and “Power” & PoE LED will be on.
Step 2: Connect “Data/in” port of injector to Non PoE switch via Cat5e/6/7 cable, and set the correct voltage(5V, 9V or 12V) by adjustable DIP switch on one side of the PoE splitter(Default setting 5V)
Step 3: Connect “Power+Data” port of splitter and “P+D/Out” port of injector via Ethernet cable, and make sure “Power Led of Splitter is on.
Step 4: Connect “Power Out” cable of splitter to power jack of network device, and connect “Data Out” Cable of splitter to to RJ45 port of network device.
Step 5: Check whether the network device is on. If not, please make sure that power is on for injector and splitter, and all cables are connected correctly.
Input :45V-55V
Output:12V1.2A
Power supply:4-5-7-8 or 1-2-3-6
