H.265 5MP AI Poe Bullet Camera
Image Sensor:1/2.8" CMOS with IR-Cut
Effective Pixel:2592x1944,5.0MP
Lens: 3.6mm
Number of IR LEDs:4pcs IR Leds+4pcs White Leds
All Cameras are built-in Microphone and Speaker, Support Two-way Audio
SupportDIY Alert Voice and Alarm Bell/ Customized new speakers with loud volume (4w high power)
Each Camera include the Waterproof Connection and Screws
32CH H.265X IP NVR
Image Sensor:1/2.8" CMOS with IR-Cut
Effective Pixel:2592x1944,5.0MP
Lens: 3.6mm
Number of IR LEDs:4pcs IR Leds+4pcs White Leds
All Cameras are built-in Microphone and Speaker, Support Two-way Audio
SupportDIY Alert Voice and Alarm Bell/ Customized new speakers with loud volume (4w high power)
Each Camera include the Waterproof Connection and Screws
Power Supply: DC 12V 4A
Plug and play,free install
Video Compression: H.265X
Encode capacity: 32CH 4K 5MP
Video Outputs: VGA/HD-MI HD Output
Recording Resolution: 4k/8MP/5MP
Recording Modes: Manual/Motion/Schedule/P2P Remote View
Hard Drive (HDD): 2*SATA port (support up to 6TB)
P2P Remote View: Support iOS, Android
20+ Languages Available: English, Chinese, French, German, Italian, Arabic, Portuguese, Russian, Spanish, Thai and so on
32CH NVR Camera Kit Included as Below:
*1 x 32CH 4k 5MP Normal IP NVR
*32 X 5MP Outdoor Metal IP Poe Cameras
*2 X 16CH Poe Switch
*1 x DC 12V 4A Power Supply for NVR
*1 x Mouse for NVR
*1 x User manual
*32 X Pack Screws&Waterproof connector For IP Cameras
*2 x Warning Sticker
*1 x Remote Control (No Battery)
*32 X 5MP Outdoor Metal IP Poe Cameras
*2 X 16CH Poe Switch
*1 x DC 12V 4A Power Supply for NVR
*1 x Mouse for NVR
*1 x User manual
*32 X Pack Screws&Waterproof connector For IP Cameras
*2 x Warning Sticker
*1 x Remote Control (No Battery)

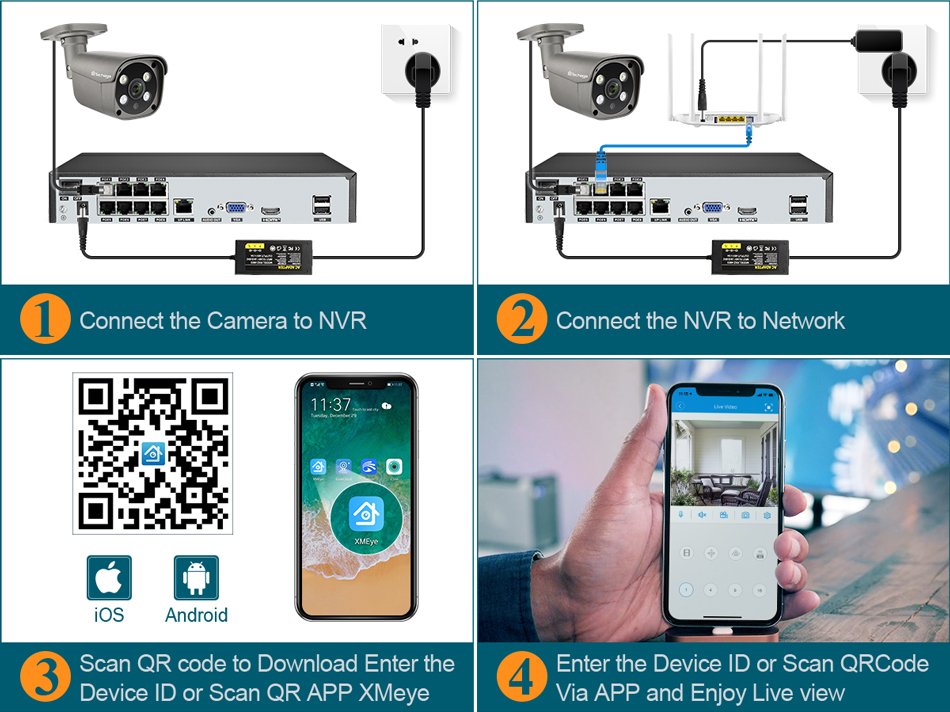

Plug And Play
This is Normal IP NVR,Need Add 2pcs 16ch Poe Switch Match Can Be Used Normally.
This is Normal IP NVR,Need Add 2pcs 16ch Poe Switch Match Can Be Used Normally.
Easy to Operate And Easy to Connect.Save Money And Space For you

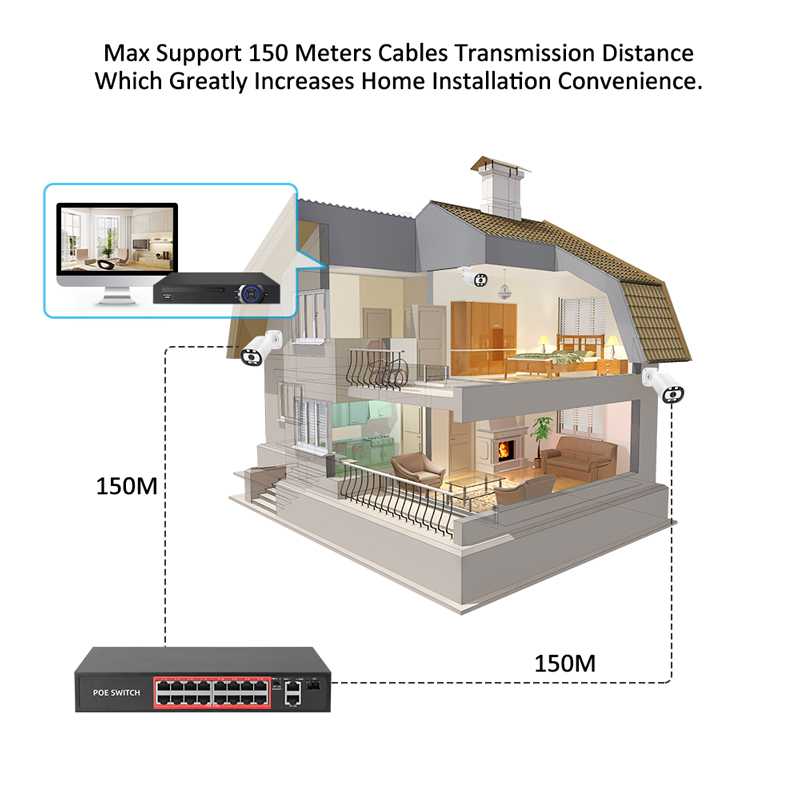

Max Support 150 Meters Cables Transmission Distance
Which Greatly Increases Home Installation Convenience.
Which Greatly Increases Home Installation Convenience.
Smart AI Motion Detection & Face Detection
When It Motion Detect , The 2pcs White Leds Will Light,Serve As a Warning Deterrent.
When It Motion Detect , The 2pcs White Leds Will Light,Serve As a Warning Deterrent.
Real-Time Two-Way Audio Communication
Camera Has Built In Microphone And Speaker, Never Miss a Moment With Your Family.
Camera Has Built In Microphone And Speaker, Never Miss a Moment With Your Family.

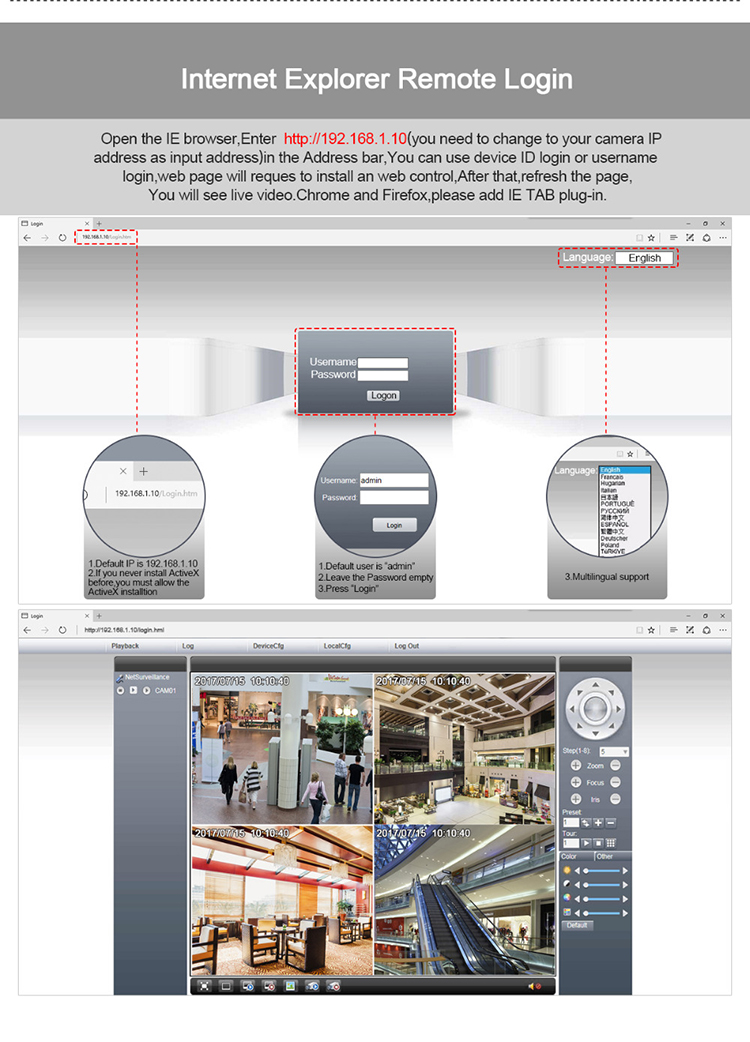

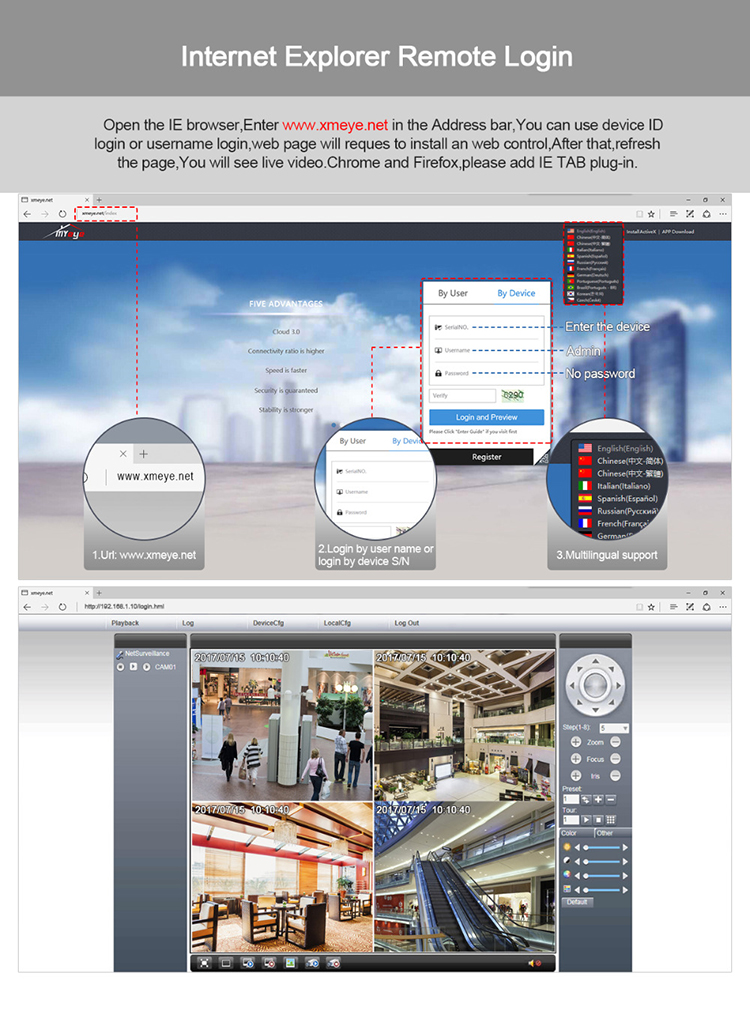

PC & Smartphone Remote View
Using the latest network technology, plug and play, you can remote view via smart phones, tablets, notebook or PC anytime anywhere.
Using the latest network technology, plug and play, you can remote view via smart phones, tablets, notebook or PC anytime anywhere.

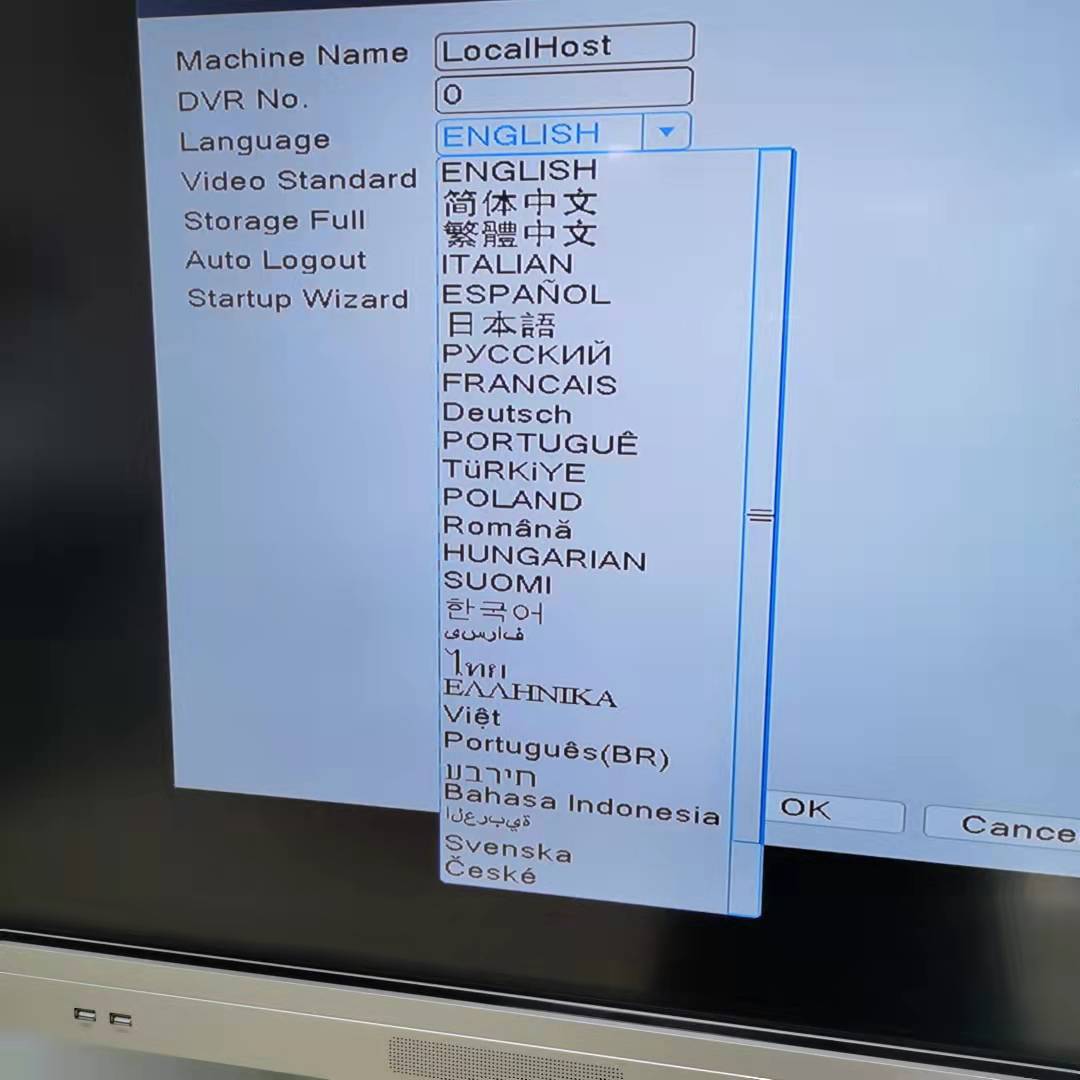

Support Multiple Languages
20+ Languages Available: Language Available:Dutch, English, Chinese, French, German, Italian, Arabic, Portuguese, Russian,Spanish, Thai and so on
Specification
|
Camera
|
Type
|
IP605G-AI-50P
|
|
Lens
|
3.6mm
|
|
|
Effective Pixels
|
5MP
|
|
|
Minimum illumination
|
0.01Lux/F1.2(color);0.001Lux/F1.2(B&W)
|
|
|
Sensor
|
1/2.5"SC335E CMOS
|
|
|
Video compression
|
H.265AI/H.265+（H.265/H.264 Compatible）
|
|
|
Electronic shutter
|
1/50(1/60)second- 1/10000 second
|
|
|
Day & night conversion mode
|
Auto
|
|
|
DNR
|
Support 2D/3D DNR
|
|
|
WDR
|
Support D-WDR
|
|
|
Video Output
|
Main Stream：5MP 2592*1944@15fps；4MP 2560*1440@20fps；2MP 1920*1080@20fps；Sub Stream：704*576@25fps
|
|
|
Audio Compression
|
G.711A
|
|
|
Audio interface
|
Two-way Audio, Bulit in Mic and Speaker, support audio and video synchronization
|
|
|
Network Interface
|
RJ 45,10M/100 M Ethernet, ieee802.11 b/g/n, dual antenna
|
|
|
Network protocol
|
RTSP/FTP/DHCP/NTP/UPnP/Onvif/P2P
|
|
|
AI
|
Human Body Motion Detection,Line Detection
|
|
|
Mobile Device
|
iOS，Android,(XMEYE)
|
|
|
Power
|
DC12V/2A
|
|
|
Size
|
190(L)*70(W)*70(H)mm
|
|
|
Weight
|
0.47/kg
|
|
|
System
|
Main processor
|
Hi3535 chip
|
|
Screen display
|
1/4/8/9/16/24/32
|
|
|
Video
|
Video standar
|
PAL(625TVL,50 Fields / sec :NTSC(525TVL,60 Fields / sec. )
|
|
Video quality
|
Monitor :D1;VGA: HD;HD MI:HD
|
|
|
Digital input
|
16CH 4K 5MP/ 8CH 4K 5mp/32CH 4K 5MP 1080P
|
|
|
Motion Detection
|
Each screen can be set to 192 (16 x 12) detection area; multi-level sensitivity can be set
|
|
|
Video playback
|
Video mode
|
Manual Alarm Motion detection timing
|
|
Local Playback
|
4ch 1080p
|
|
|
Storage backup
|
Space
|
CIF: 5G / day / channel D1: 20G / day / channel 720P: 40G / day /channel 1080P: 80 G/ day/channel
|
|
Video save
|
HDD. Network
|
|
|
Backup mode
|
Network backup,USB mobile HDD,USB Burner,DVD CD burning
|
|
|
|
Video output
|
1ch VGA output,1ch HD MI output( 1920x1080P)
|
|
Network interface
|
RJ45 10M/100M/1000M (Adaptive Ethernet port )
|
|
|
PTZ control
|
One RS485 ptz control interface
|
|
|
USB interface
|
2xUSB interface
|
|
|
HDD
|
2xSATA (MAX 6TB each disk )
|
|
|
Others
|
Power supply
|
12V,4A
|
|
Nvr Size
|
360(width)X300(deepth)x60(height)mm
|
|
|
Nvr weight
|
1.9kg
|
|
|
Packing size
|
345(width)X330(deepth)x94(hight)mm
|
|
|
Packing weight
|
3.5kg(not including HDD)
|
|
