Techage Full HD 8CH NVR 1080P POE CCTV System Kit 2MP Indoor/ Outdoor IP Camera Waterproof IR P2P Video Security Kit

  • Overview
  • Specification
  • Faq


6708F5N-4*BT508V-20SC/P


https://cloud.video.taobao.com/play/u/17289704157/p/1/e/6/t/10301/50069500439.mp4

62-1

62-3

Package Inckudes this is 1080P 2.0MP HD POE CCTV System

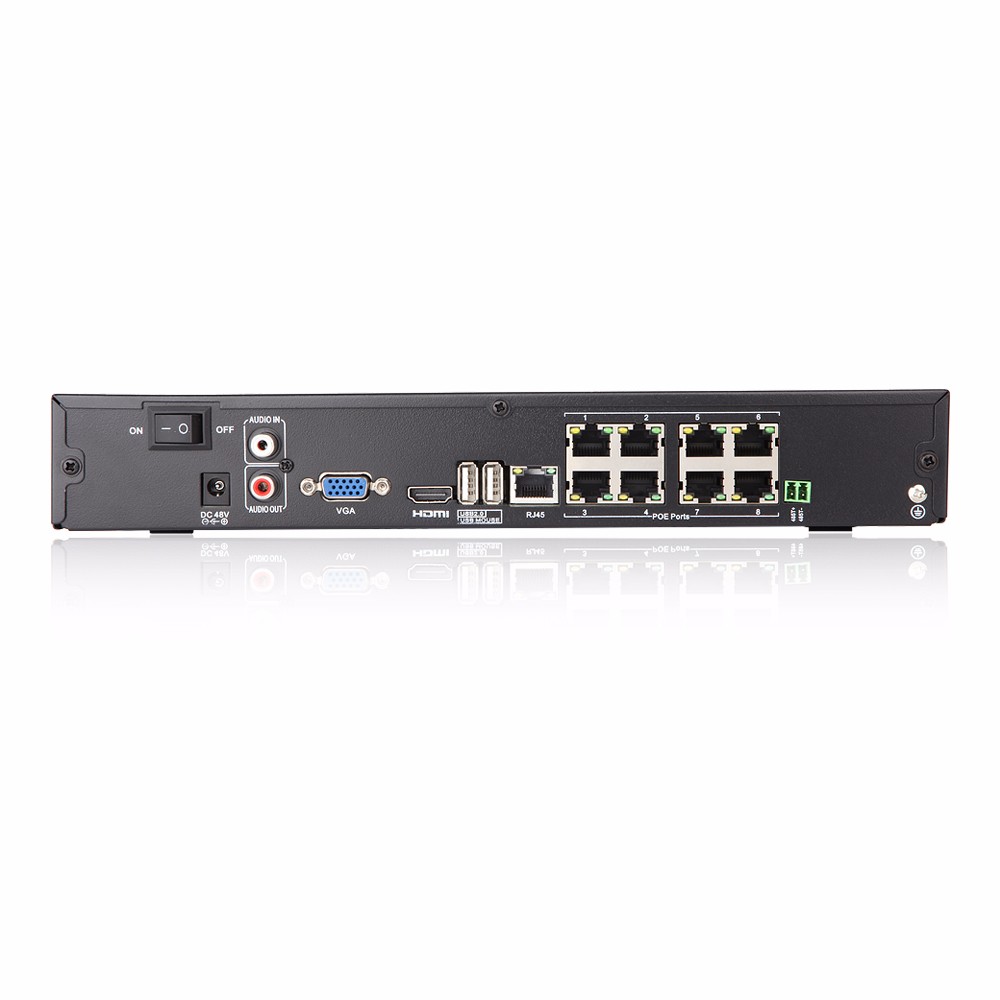

1 x 8Ch 48V NVR built in 8 POE port

4 x 2.0MP 1080P Waterproof Outdoor IP Cameras

4 x 20M Power Network Cable for Camera

1 x Power Supply for NVR

1 x Mouse for NVR

1 x User manual

2 x Warning Sticker



Advantages


1. Our network cable is waterproof, sunscreen, antioxidant , signal stability, fast transmission. It suits for outdoor and indoor.


QQ20170613104946


2. Camera is IP66 waterproof and connector is waterproof.

QQ20170613105137

QQ20170613105023

3. POE Advantages.

Don't need extra power cables or adapters or switch. Plug And Play and easy setup.


QQ20170613105120

4. Techage POE CCTV System

Max support 60-100 meter transmission distance


QQ20170613105043


1080P HD Display

1080P 2.0MP High definition image, super infrared night vision, H264/H.265 Video



62-4



Install and Connect it

It can be quickly and easily setup by anyone. Instantly see live video using your computer, tablet, or phone from anywhere.Don't need extra power cables or adapters or switch.



62-5



61-6


Smart IR-Cut Night Vision

The smart IR-Cut filter switches automatically between day and night to reduce color cast in day time and enhance image brightness at night making sure you can get vivid surveillance footage from dawn to dark



61-761-8



Advanced Motion Detection Recording

The motion detection recording function: when motion is detected the DVR will save the footage into hard disk without missing any important events. You can even ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.



E-mail Alerts

NVR will send you mail automatically if there is any motion detected.



61-9



Video With Smart Playback

Smart playback available with customizable searching area, playback time is greatly reduced by speeding through unimportant videos



61-10


IP66 waterproof camera

our camera all can suit for outdoor and indoor



62-11



PC & Smartphone Remote View

Using the latest network technology, plug and play,  you can remote view via smart phones(Android/iPhone), tablets, notebook or PC anytime anywhere.



6-12



Wide Application

Anytime Anywhere Surveillance, Conntrol Your Security System at Your Fingertips



6-13


Real Product and Video Pictures


QQ20170223161322QQ20170223161826




45646378IMG_4852IMG_4841

Techage-8CH-1080P-POE-NVR-CCTV-System-8PS-2500TVL-2-0-mp-IP-Camera-Outdoor-Waterproof 2




Specifications for NVR Main Board




Features

Ø    Support HDMI output VGA HD output;

Ø    Support ONVIF; access third party;

Ø    Support web, CMS, center platform management software MYEYE, provide SDK development;

Ø    Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;

Ø    Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center, etc.);


Parameters

Model

NBD8008R-PL

System

Main processor

Hi3536D

Operating System

Embedded Linux

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

Interface

Operator interface

16-bit true color graphic menu operation interface, support mouse operation

Preview

1/4/8

Video

Video input (IP)

4*5M /8*4M

Access bandwidth

64Mbps

Forwarding bandwidth bandwidth

36Mbps

Video compression

H.265/H.264

Display quality

Max: 1920*1080

Playback quality

5M /4M

Decode

1*5M /1*4M

VR

Unsupport

Motion detection

Support(depend on camera)

Audio

Audio compression

G.711A

Intercom

unsupport

Record

&

playback

Recording mode

Manual>Alarm>Dynamic Detection>Timing

Local payback

1*5M /1*4M

Search mode

Search by Time/Calendar/Event/Channel

Record storage

HDDNetwork

Backup mode

Network backup, USB hard disk, USB burner, SATA burner

External interface

Video output

1ch VGA1ch HDMI HD output

Audio I/O

0/1

Alarm I/O

0/0

Network interface

1*RJ45 10M/100M Adaptive Ethernet port

USB interface

2*USB2.0 ports

HDD

1* SATA(Up to 8TB for each disk)

ESATA

No

Serial interface

No

Other

ONVIF

Support

Power supply

12V/2A

Power Consumption

<10W(Without HDD)

Work environment

Temperature:0℃ 55℃ , Humidity:10%90%RH , Atm:86kpa106kp

Dimension

137mm*82mm

Weight

A total of about 92g














































Specification for camera


Features:

Ø   1080P HD resolution,clear and fine images;

Ø   Support 2D/3D noise reduction,digital wide dynamic;

Ø   Advanced H.265/H.264 video compression,Super low rate,high definition quality of image;

Ø   Professional anti-lightning,conform to GB/T17626.5 and  IEC61000-4-5。

Ø   Support ONVIF;access third party;

Ø   Support various mobile monitoring(iPhone,Android);

Ø   Provide web、CMS、center platform management software MYEYE,provide SDK development

Ø   Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed



Parameters:

Model

IPG-80HE20PS-S

System structure

Embedded RTOS,dual-core 32bit DSP(Hi3516EV100),pure hard compression ,watch dog

Sensor

2.0M CMOS sensor ,color 0.1Lux@F1.2,black/white 0.01Lux@F1.2

Video compression

H.265/H.264,support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable

Image output

Main stream: 1920*1080@20fps,1280*720@25fps; sub-stream: 704*576@25fps;

Shutter

1/50(1/60)s to 1/10,000s

Lens

N/A

Day and night

Support IR-CUT

Noise reduction

Support 2D/3D

Wide dynamic

Support digital

Auto iris

N/A

Audio compression

G.711,support bidrectional talk,audio&video synchronization

Audio interface

1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone

Network interface

1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc

Extension interface

N/A

Singal interface

One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR

PTZ

N/A

Motor interface

N/A

Alarm I/O

1/0 (support alarm input and video link to background)

WIFI interface

N/A

Reset interface

N/A

SD Card

N/A

Reliability

Comprehensive lightning protection, 7 * 24 hours 65  high temperature stable and reliable testing

Intelligence analysis

N/A

Other function

Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG captureunited remote client monitoring sofawareMYEYE;perfect SDK;

ONVIF

Support

Mobile monitoring

Support multiple mobile monitoringiOSAndroid

Power

DC12V/2A input, power consumption:≤3W,

Dimension

38mm*38mm

Other

Support POE power supply (optional), not support any custom











































Package includes:

1 x 8 CH 1080P NVR

4 x 1080p Outdoor Bullet IP Cameras

4 x 20M Power Video Plug and Play Network Cable for Camera

1 x Power Supply for NVR

1 x Mouse for NVR

1 x User manual

DOES NOT come with Hard Drive!



Two Colors: White n Grey with audio.
Buy white or grey according to your house.
Make the cameras close to the color of your walls.

Try to make it beautiful and safe at the same time!

Clear Day/Night Vision-1080P

From previous customers' feedback, you can see how clear the images are.



You get two ways to use the cameras---One, Use them with NVR

The network cable in the package is 20 meters.
When the distance between the nvr and the camera is too far, about 60~100 meters, you can connect the camera with 12V power adapter to make sure it is supplied with ample power.

Some people may ask, this is poe system and why I have to connect it with 12V power adapter. The above circumstance in which the distance is far is an exception. Other than that, no need of extra power supply.


Two, Use them Alone

Connect it to your router with network cable
Power it with 12V power adapter (not in the package)
When it works, you can view it by the following two ways:
1. mobile phone / tablet / laptop

2. IE Explorer / CMS (LAN and WAN)


You have THREE Ways to View the Images

From Mobile / Tablet / Laptop

Download app to your tablet and phone: XMeye
Download the pc software to your laptop: CMS
Add the device and start remote viewing.
Set Motion Detection and email, you can get email alert to your phone when motion's detected.
